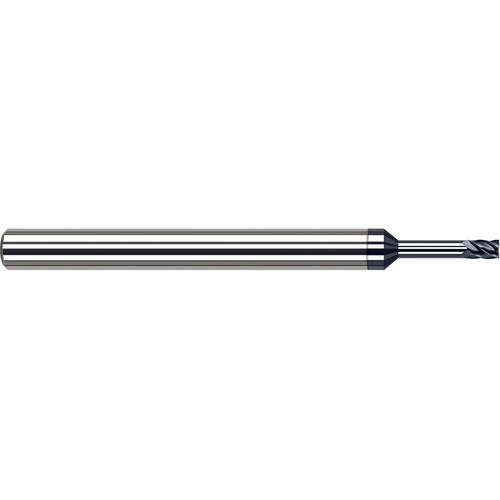

5 Flute - 0.1250″ (1/8) Cutter DIA × 0.0100″ Radius × 0.1870″ (3/16) LOC × 0.6250″ (5/8) Reach - AlTiN Nano Coated End Mills for Hardened Steels - Corner Radius - For Steels Up to 55 Rc - Long Reach, Stub Flute
SQ End Mill; 1/8″ Dia. × 3/16″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 0.01″ RE ; 0.01″ RE ; 5 FL ; 5/8″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/8″ | Corner Radius (RE) | 0.01″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Neck Diameter (DN) | 0.121″ |
| Depth of Cut Maximum (APMX) | 3/16″ | Length Group | 5D |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN | Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees | Shank Size (SS) | 1/4″ |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
| End Shape | Corner Radius | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 5/8″ | Single / Double End | Single End |
| Applicable Material | | Hard Materials | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
