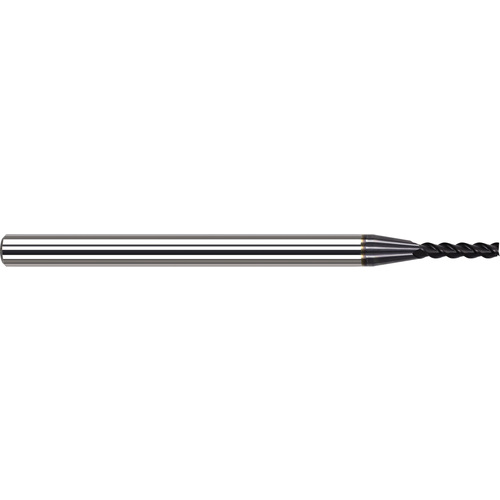

3 Flute - 0.0620″ (1/16) Cutter DIA × 0.0050″ Radius × 0.3120″ (5/16) LOC - AlTiN Coated Variable Helix End Mills for Medium Alloy Steels - Corner Radius
Corner Radius End Mill; 1/16″ Dia. × 5/16″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/16″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 0.005″ |
| Depth of Cut Maximum (APMX) | 5/16″ | Length Group | 5D |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN | Decimal Equivalent | 0.062″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees | Shank Size (SS) | 1/8″ |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.005″ |
| End Shape | Corner Radius | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 5/16″ | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.030
