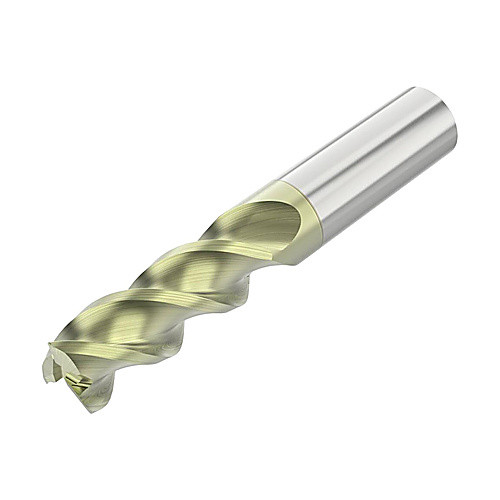

A345R-0.125-D3-R020-Z3ANF
SQ End Mill; 1/8″ Dia. × 3/8″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 0.02″ RE ; 0.02″ RE ; 3 FL ; Carbide ; ANF ; Series A345R
| Cutting Diameter (DC) | 1/8″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 3/8″ | Corner Radius (RE) | 0.02″ |
| Overall Length (OAL) | 1-1/2″ | Tool Type | Corner Radius |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.125″ |
| Coating | ANF | Series/List # | A345R |
| Flute Count (NOF) | 3 | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
Product Features
| Country of Origin | USA |
