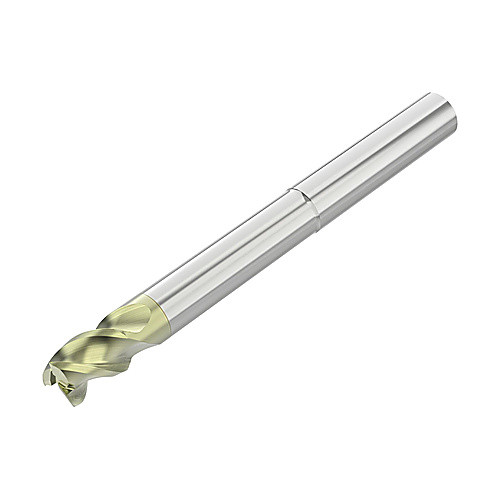

AN345R-.750-E3-R010-Z3ANF
SQ End Mill; 3/4″ Dia. × 1″ LOC × 3/4″ Shank Dia. × 6″ OAL ; 0.01″ RE ; 0.01″ RE ; 3 FL ; Carbide ; ANF ; Series AN345R
| Cutting Diameter (DC) | 3/4″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 1″ | Corner Radius (RE) | 0.01″ |
| Overall Length (OAL) | 6″ | Tool Type | Corner Radius |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.75″ |
| Coating | ANF | Series/List # | AN345R |
| Flute Count (NOF) | 3 | Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0
