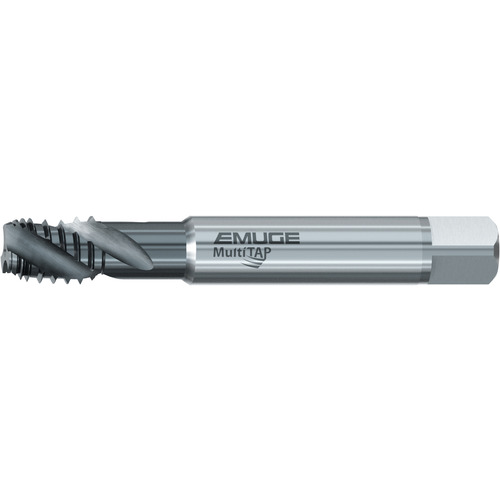

1/4-18 MULTITAP NPT PIPE
| Tool Type | Pipe Tap | Applicable Material | | Universal Materials | |
| Thread Diameter Size (TDZ) | 1/4″ | Chamfer | C |
| Threads per Inch (TPI) | 18 | Coating | TiCN |
| Thread Standard | NPT | Cutting Edge Material | HSSE |
| Usable Length (LU) | 0.77″ | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 35 Degrees | Special Feature | The interrupted, skip-tooth profile lowers torque demands and increases tool life. |
| Flute Count (NOF) | 3 | Length Group | Standard |
| Overall Length (OAL) | 3.937″ | Series/List # | BU879300 |
| Connection Diameter Machine Side (DCONMS) | 9/16″ | Thread Size | 1/4″-18 |
| Coolant Supply Property (CSP) | External |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.15
