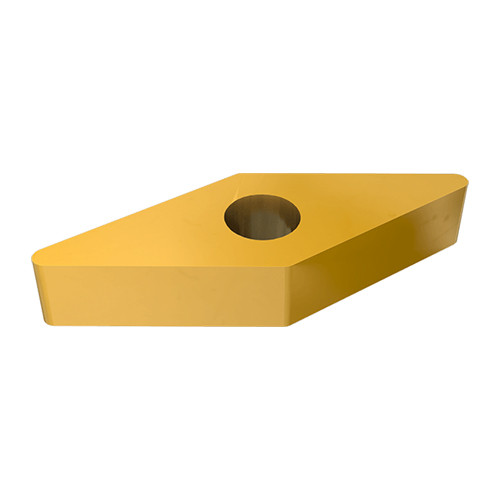

VNGA 331 T0420 IN10
| Applicable Material | | Cast Iron | Hard Materials | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Int. 35° Diamond 93° Approach | | Min D.O.C. | 0.004″ |
| Insert Style | VNGA | Depth of Cut Maximum (APMX) | 0.079″ |
| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Insert Size | 331 | Max. Turning Feed (ft(max)) | 0.01338 ″/rev |

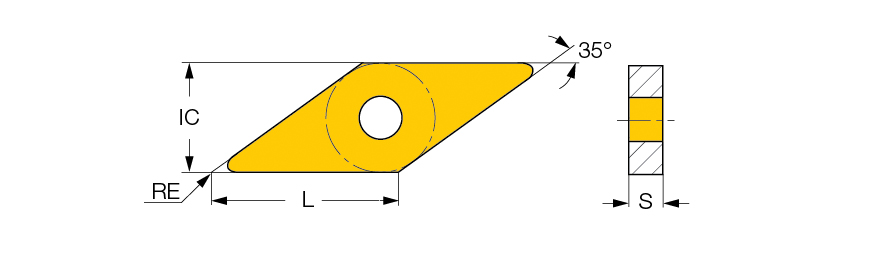

| Cutting Edge Length (L) | 0.654″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | A |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Grade | IN10 |
Product Features
| Family Description | Negative 35° rhombic double-sided ceramic inserts for machining cast iron, cast iron and heat resistant alloys. | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
7.9
