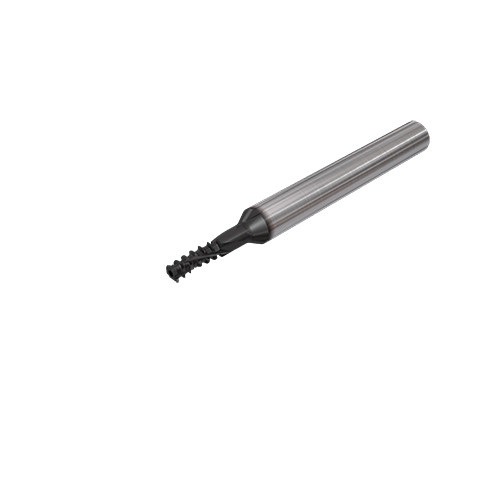

MTECK 0250C50 20UN IC908
Thread Mill; 1/4″ ; 1/4″ Shank Dia. × 2-1/2″ OAL ; Carbide ; TiAlN ; IC908

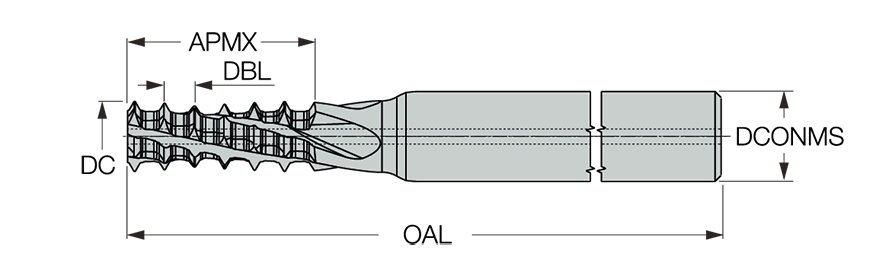

| Thread Size | 1/4″ | Cutting Edge Material | Carbide |
| Thread Standard | UNC |THFT | | Usable Length (LU) | 0.5236″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 0.185″ | Grade | IC908 |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 0.5236″ |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | UN60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Solid carbide internal threading endmill step release, lead x2 with coolant hole, used for UN thread profiles | Country of Origin | Israel |
Shipping Info
Package Weight
26
