| Thread Pitch (TP) | 1 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | MF |THFT | | Cutting Edge Material | Carbide |

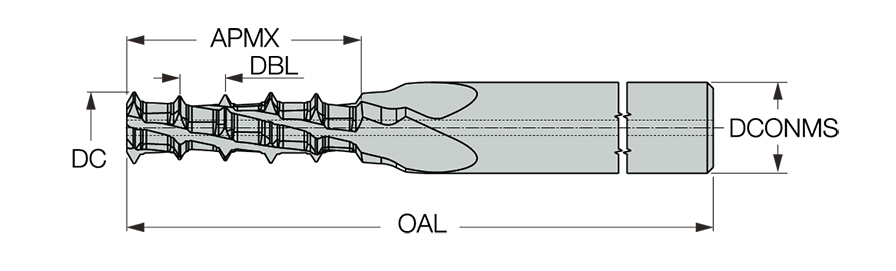

| Connection Diameter Machine Side (DCONMS) | 0.315″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 0.311″ | Grade | IC908 |
| Overall Length (OAL) | 2.52″ | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 5 | Depth of Cut Maximum (APMX) | 0.8425″ |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | M60 |
Product Features

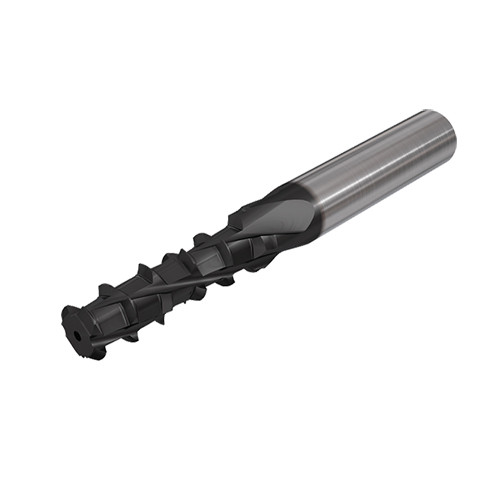

| Family Description | Solid carbide internal threading endmill step release, lead x3 with coolant holes, used for ISO thread profile. | Country of Origin | Israel |
Shipping Info
Package Weight
42
