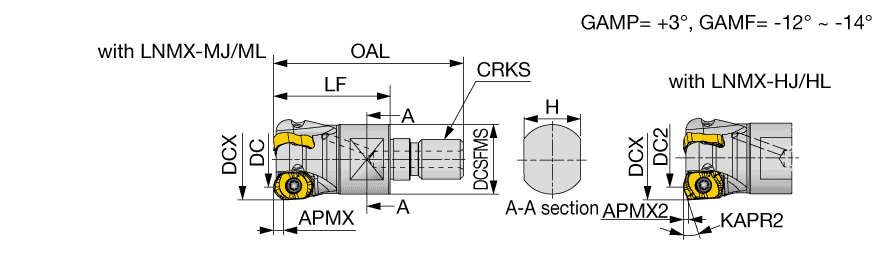

| Cutting Diameter (DC/DCX) | 1-1/4″ | Master Insert Identification (MIID) | LNMX0405R4-MJ |
| Cutting Diameter (DC) | 1-1/4″ | Functional Length (LF) | 1-1/2″ |
| Cutting Item Count (CICT) | 4 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.157″ | Body Material | Steel |
| Overall Length (OAL) | 2.406″ | Connection Retention Knob Thread Size (CRKS) | M16 |
| Application | | High Feed Milling | Profile Milling | | Shank Height (H) | 0.866″ |
| Connection Diameter Machine Side (DCONMS) | 1.142″ | Cutting Diameter Maximum (DCX) | 1-1/4″ |
Product Features

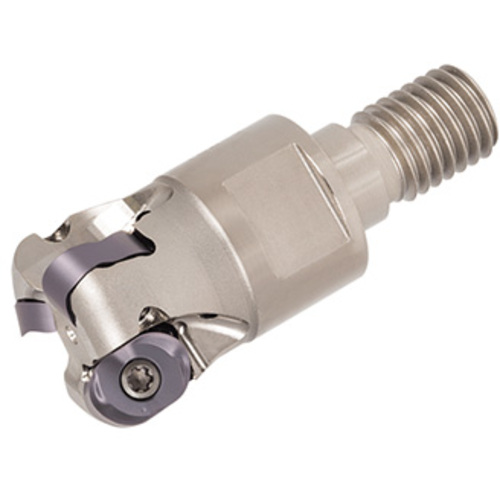

| Family Description | Radius cutter with double-sided insert; Modular head with TungFlex threaded adaptation | Country of Origin | Japan |
| Remarks | APMX may vary with insert type. |
