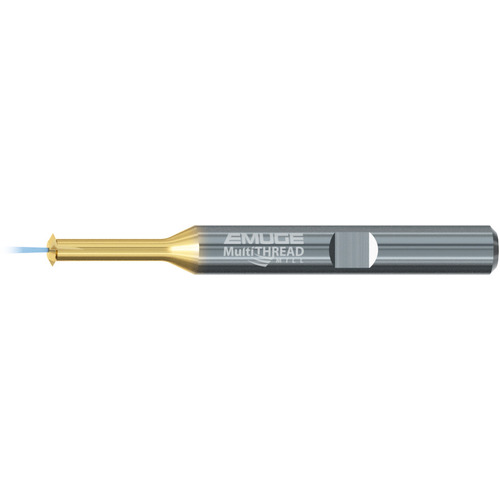

Thread Mill; 3/8″ - 16 × 5/16″ Shank Dia. × 2-1/2″ OAL ; Carbide ; TIN-T21
| Thread Size | 3/8″ | Shank Type | Weldon |
| Threads per Inch (TPI) | | 16 | 24 | | Coating | TiN |
| Thread Standard | UNC | UNF | Application | | External Thread Milling | Internal Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Applicable Material | | Universal Materials | |
| Cutting Diameter (DC) | 0.301″ | Cutting Edge Material | Carbide |
| Overall Length (OAL) | 2-1/2″ | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Length Group | 2xD |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Thread Mill |
Product Features
| Remarks | • For economical production of internal threads in a wide range of materials • Large core diameter with high profile correction for exacting threads • Emuge proprietary TIN-T21 PVD coating developed for additional tool life • Optimized cutting geometry that works well in a job shop environment with multiple materials. | Country of Origin | Germany |
Shipping Info
Package Weight
0.05
