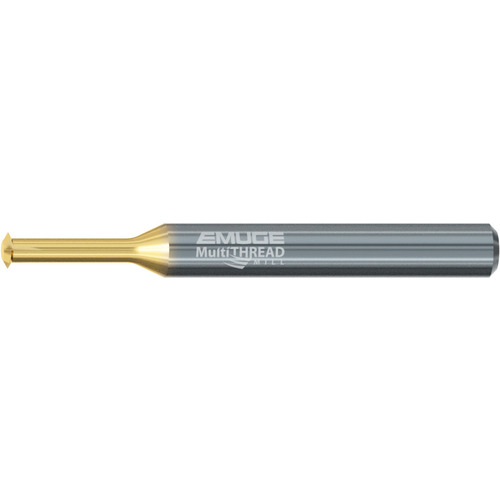

Thread Mill; #0 - 80 × 1/8″ Shank Dia. × 1-5/8″ OAL ; Carbide ; TIN-T21
Thread Mill; #0 - 80 ; 1/8″ Shank Dia. × 1-5/8″ OAL ; Carbide ; TiN
| Thread Size | #0 | Coating | TiN |
| Threads per Inch (TPI) | 80 | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Standard | UNF | Applicable Material | | Universal Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.045″ | Series/List # | GFS13705 |
| Overall Length (OAL) | 1-5/8″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 1 | Length Group | 2xD |
| Coolant Supply Property (CSP) | External | Tool Type | Thread Mill |
| Shank Type | Round |
Product Features
| Remarks | • For economical production of internal threads in a wide range of materials • Large core diameter with high profile correction for exacting threads • Emuge proprietary TIN-T21 PVD coating developed for additional tool life • Optimized cutting geometry that works well in a job shop environment with multiple materials. | Country of Origin | Germany |
Shipping Info
Package Weight
0.008
