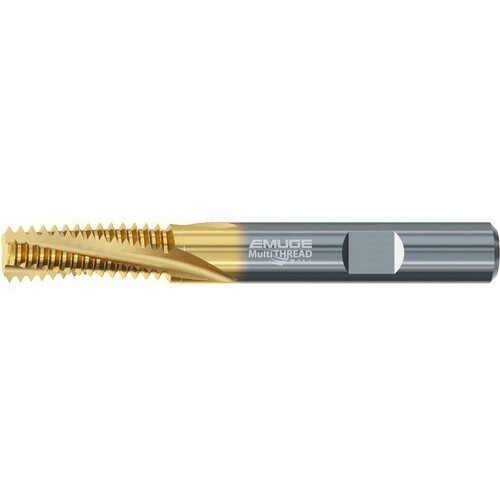

Thread Mill; 3/4″ - 16 × 5/8″ Shank Dia. × 4-1/4″ OAL ; Carbide ; TIN-T21
Thread Mill; 3/4″ - 16 ; 5/8″ Shank Dia. × 4-1/4″ OAL ; Carbide ; TiN
| Thread Size | 3/4″ | Coating | TiN |
| Threads per Inch (TPI) | 16 | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Standard | UNF | Applicable Material | | Universal Materials | |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.621″ | Usable Length (LU) | 1.530″ |
| Overall Length (OAL) | 4-1/4″ | Series/List # | GFR15105 |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Coolant Supply Property (CSP) | External | Length Group | 2xD |
| Shank Type | Weldon | Tool Type | Thread Mill |
Product Features
| Remarks | • For economical production of internal threads in a wide range of materials • Large core diameter with high profile correction for exacting threads • Emuge proprietary TIN-T21 PVD coating developed for additional tool life • Optimized cutting geometry that works well in a job shop environment with multiple materials. | Country of Origin | Germany |
Shipping Info
Package Weight
0.528
