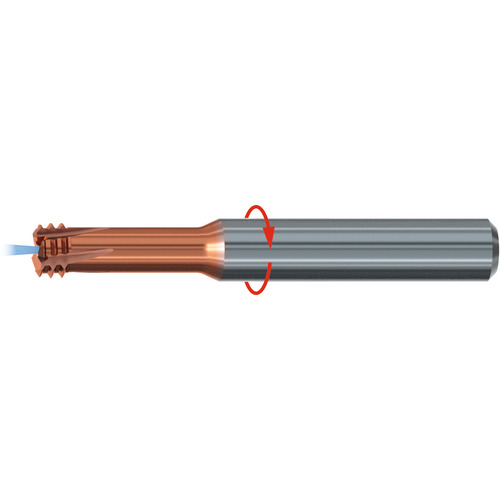

Thread Mill; 3/8″ - 24 × 8 mm Shank Dia. × 62 mm OAL ; Carbide ; Series GF7B682B
| Thread Size | 3/8″ | Shank Type | Round |
| Threads per Inch (TPI) | 24 | Coating | AlCr |
| Thread Standard | UNF | Application | | Drilling | Internal Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Diameter (DC) | 7.97 mm | Flute Helix Angle (FHA) | 10 Degrees |
| Overall Length (OAL) | 62 mm | Cutting Edge Material | Carbide |
| Flute Count (NOF) | 6 | Series/List # | GF7B682B |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Solid Carbide Thread Mills |
Product Features
| Remarks | • Solid carbide circular thread mill with left hand flute design for additional stability. • Three tooth design with drilling, roughing and finishing in a single profile. • Full bottoming threads to within 1 pitch • For aerospace and exotic materials | Country of Origin | Germany |
Shipping Info
Package Weight
0.2
