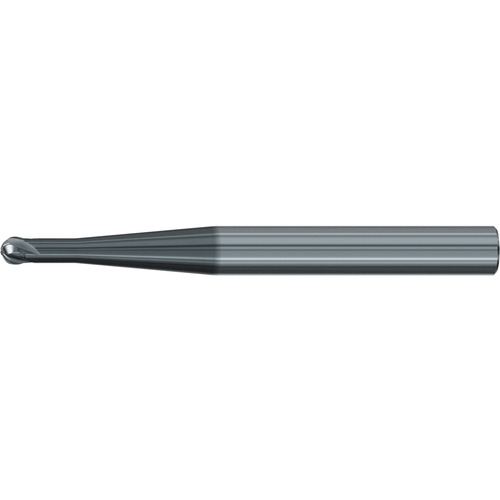

Ballnose End Mill; 8 mm Dia. × 6.6 mm LOC × 12 mm Shank Dia. × 125 mm OAL ; 4 FL ; Carbide ; AlCr ; Series 2564L
BN End Mill; 8 mm Dia. × 6.6 mm LOC × 12 mm Shank Dia. × 125 mm OAL ; 4 FL ; Carbide ; AlCr

Cutting Diameter (DC) | 8 mm | Flute Count (NOF) | 4 |
Connection Diameter Machine Side (DCONMS) | 12 mm | Shank Type | Round |
Depth of Cut Maximum (APMX) | 6.6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
Overall Length (OAL) | 125 mm | Application | | Finishing | |
Cutting Edge Material | Carbide | Tool Type | Ballnose Endmill |
Coating | AlCr | Series/List # | 2564L |
Product Features
Remarks | • TOP-Cut "Lollipop" carbide ball nose end mill in long and extra long design for roughing and finishing operations in many materials
• Ball nose with up to 240° cutting range enables undercut machining
• ALCR coating for longer tool life, very well suited for high-alloyed materials | Country of Origin | Germany |
Shipping Info
Package Weight
0.313
