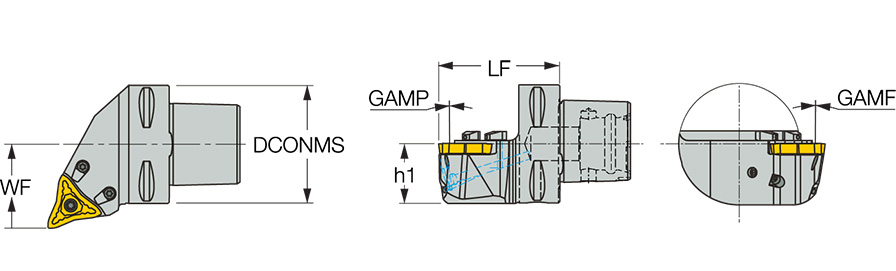

| Overall Length (OAL) | 2.362″ | Application | | High Feed and Diverse Turning Direction Applicatio | ISO 26623 1 (CAMFIX) | |
| Functional Length (LF) | 2.362″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Width (WF) | 1.378″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1.968″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 0.63″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features

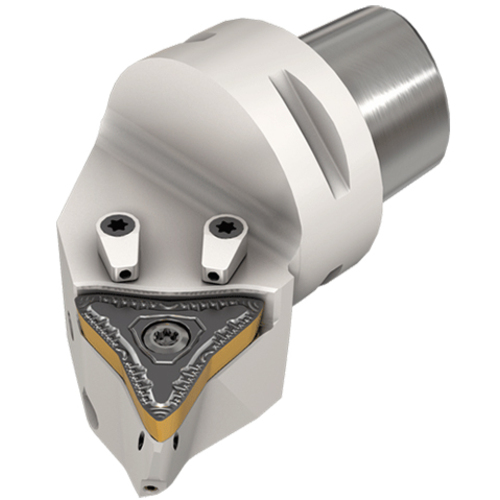

| Family Description | Safety lock tools with CAMFIX shanks for high feed positive inserts for roughing applications | Country of Origin | Israel |
| Remarks | For Depth of cut vs. position angle examples click on More Info A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, click on More Info. |
Shipping Info
Package Weight
845
