| Cutting Diameter (DC/DCX) | 81.4 mm | Connection Diameter Machine Side (DCONMS) | 40 |
| Cutting Diameter (DC) | 80 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 81.4 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 10 | Application | | DIN 69871 (ISO7388 1) | Facing | Shouldering | |
| Depth of Cut Maximum (APMX) | 3 mm | Measurement Type | Metric |
Product Features

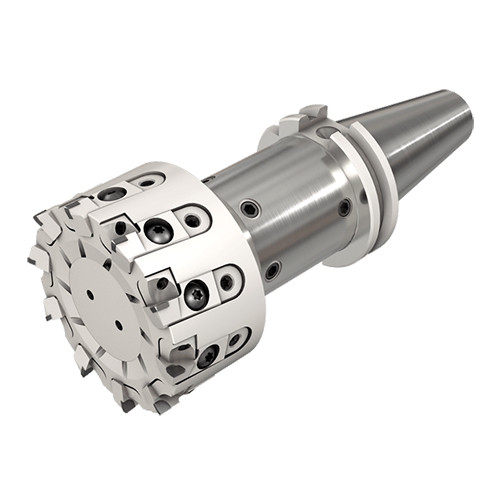

| Family Description | 90° endmills with DIN69871 adaptation carrying super positive and polished rake inserts for machining aluminum at high rotation speeds. A special pocket design improves its resistance to centrifugal forces | Country of Origin | Italy |
| Remarks | Important: When machining at very high cutting speeds and the insert needs replacing, it is also recommended to replace the screws Kit balancing screws should be ordered separately Insert tightening torque: 6 (Nxm) |
