DSW050-082-06CI16 AH725

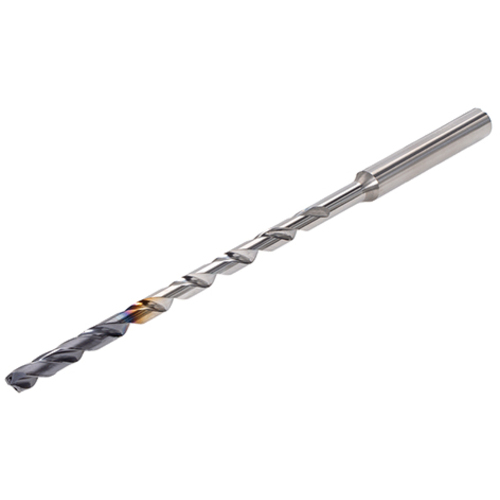

SC Drill; 5 mm Dia. × 6 mm Shank Dia. × 130 mm OAL ; 135 Degrees ; TiAlN

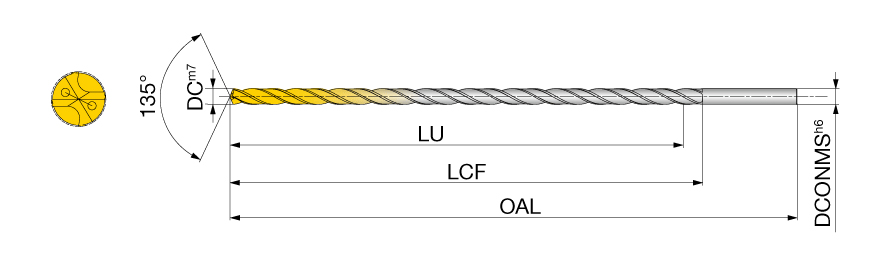

| Drill Bit Size / Cutting Diameter (DC) | 5 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5 mm | Tool Type | solid carbide Drills |
| Coating | TiAlN | Grade | AH725 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Application | | General Drilling | | Usable Length (LU) | 82 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Overall Length (OAL) | 130 mm |
| Point Angle (SIG) | 135 Degrees | Body Material | Carbide |
| Shank Type | Round |
Product Features
| Family Description | Solid carbide drill with coolant hole, L/D = 16 | Country of Origin | USA |
