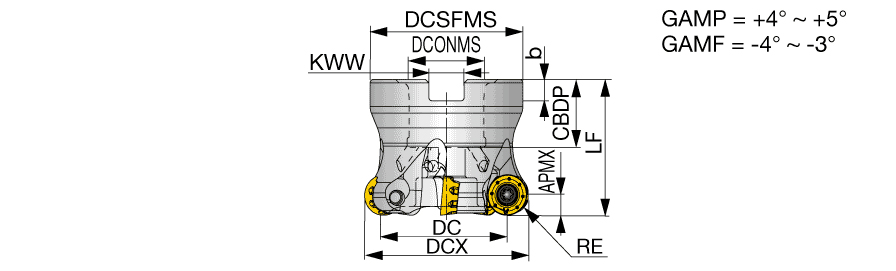

TRRQ10M052B22.0R06
Indexable Face Mill; 52 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 5 mm LOC ; 6 Inserts
| Cutting Diameter (DC/DCX) | 52 mm | Master Insert Identification (MIID) | RQMT10T3ENC8-MM |
| Cutting Diameter (DC) | 42 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 52 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 | Application | | Profile Milling | |
| Depth of Cut Maximum (APMX) | 5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Functional Length (LF) | 40 mm |
| Overall Length (OAL) | 40 mm | Tool Type | Round corner cutters |
Product Features
| Family Description | Radius mill with anti-rotation system | Country of Origin | JAPAN |
| Remarks | Wrenches of TRRQ10... and TRRQ16... are sold separately. |
