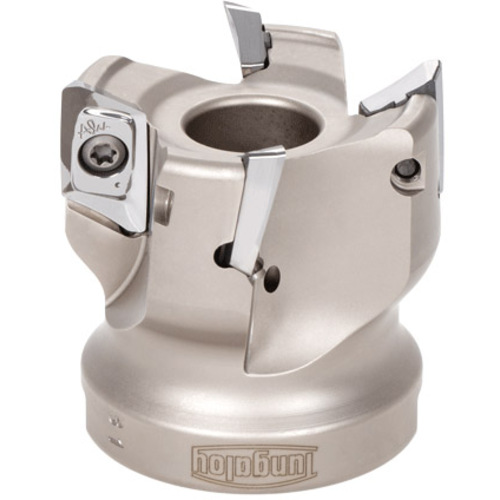

TPXV16M100B32.0R06
Indexable Face Mill; 100 mm Dia. × 32 mm Shank Dia. × 63 mm OAL × 16 mm LOC ; 6 Inserts

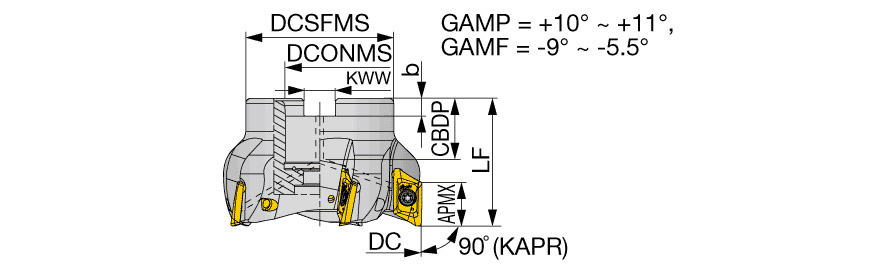

| Cutting Diameter (DC/DCX) | 100 mm | Master Insert Identification (MIID) | XVCT160508PEFR-AM |
| Cutting Diameter (DC) | 100 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 100 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 16 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Functional Length (LF) | 63 mm |
| Overall Length (OAL) | 63 mm | Tool Type | 90 Facemills for Al. & HTA |
Product Features
| Family Description | Square shoulder mill for high-speed aluminum machining | Country of Origin | S.Korea |
| Remarks | XVCT AM inserts can be used with a TPXV/EPXV cutter. DO NOT use XVCT AJ inserts with a TPXV/EPXV cutter. This may cause tool and machine damage. |
