VEE075L62R000-U04S12 AH715

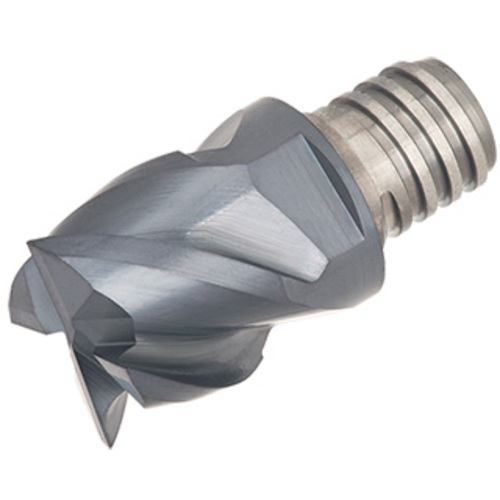

End Mill Head; 3/4″ Dia. × 0.62″ LOC ; 4 FL ; Carbide ; TiAlSiCrN ; AH715
| Application | | Shoulder Milling | | Grade | AH715 |
| Cutting Diameter (DC) | 3/4″ | Coating | TiAlSiCrN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Corner Radius (RE) | 0″ | Maximum Feed per Tooth (fz(max)) | 0.0067 in/tooth |
| Cutting Diameter Maximum (DCX) | 3/4″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.62″ | Tool Type | Solid carbide center cutting endmills 90 |
| Functional Length (LF) | 1″ | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees |
Product Features
| Family Description | Square, 4 flutes, roughing - finishing, general | Country of Origin | Japan |

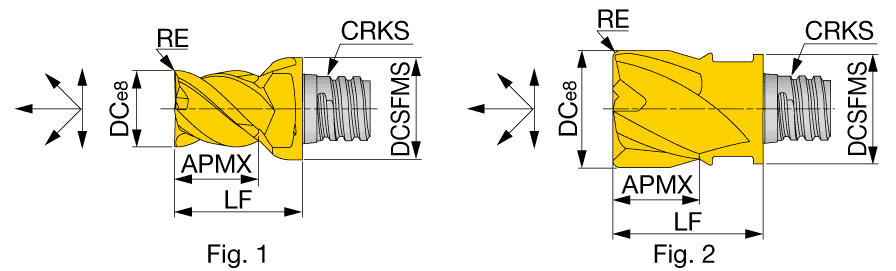

| Remarks | Fig. 1: Avoid interference with workpiece when using this cutting head. The shank diameter is larger than the cutter diameter when assembled. Torque: Recommended torque (Nm) for clamping. Wrench not included. |
Shipping Info
Package Weight
0
