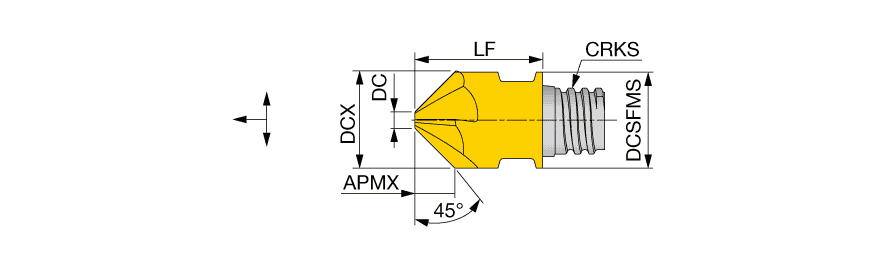

VCA0375L16A45-U04S06 AH715
End Mill Head; 0.073″ Dia. × 0.15″ LOC ; 4 FL ; Carbide ; TiAlSiCrN ; AH715
| Application | | Multi Functional tools | | Grade | AH715 |
| Cutting Diameter (DC) | 0.073″ | Coating | TiAlSiCrN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 3/8″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.15″ | Tool Type | Solid chamfering endmills |
| Functional Length (LF) | 0.512″ | Body Material | Carbide |
| Flute Helix Angle (FHA) | 0 Degrees |
Product Features
| Family Description | Chamfering, 4, 6 flutes, chamfering angle: 45 degree | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. Wrench sold separately. |
