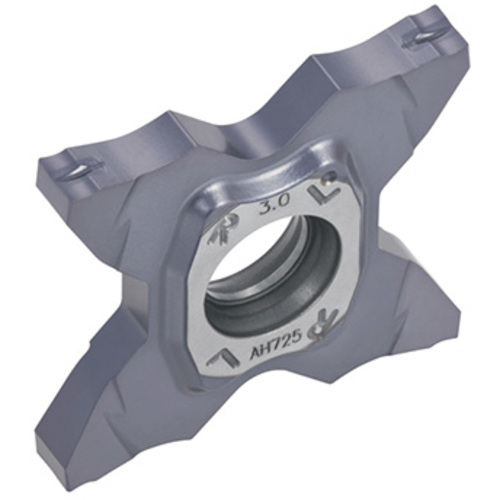

TCS27-318-020 AH7025
Parting Off Insert; 1/8″ CW × 0.0079″ Corner Radius ; Carbide ; TiAlN ; AH7025
| Cutting Width (CW) | 1/8″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0079″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 0.504″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AH7025 | Body Material | Carbide |
| Application | | Inserts | |
Product Features
| Family Description | Precision grooving and parting off inserts with 4 cutting edges. General purpose type. | Country of Origin | Japan |

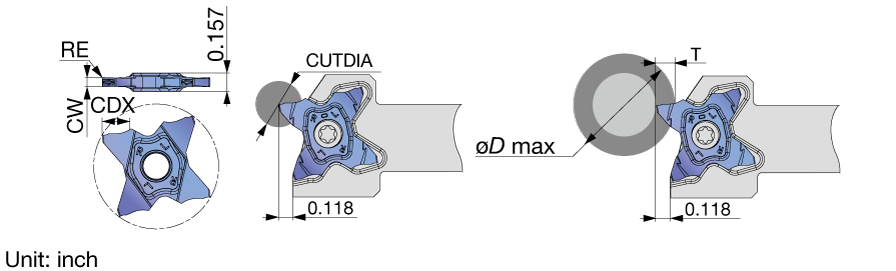

| Remarks | For the relation between groove depth (T) and max diameter (D max), click on "More Info". |
Shipping Info
Package Weight
15.6
