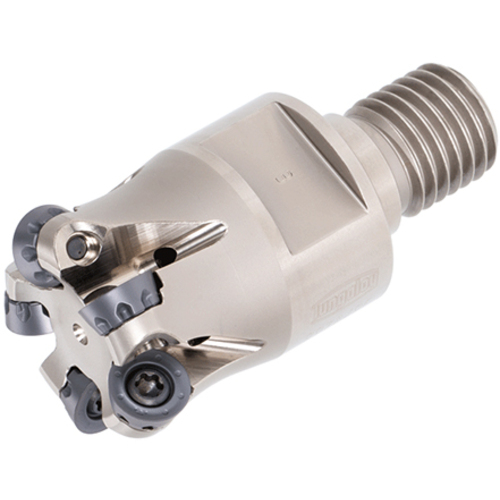

HRRQ10M032M16R05

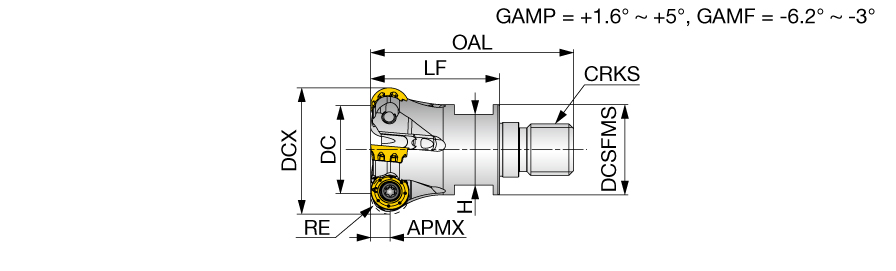

Indexable End Mill; 22 mm Dia. × 5 mm LOC × 63 mm OAL
| Cutting Diameter (DC/DCX) | 22 mm | Functional Length (LF) | 40 mm |
| Cutting Diameter (DC) | 22 mm | Tool Type | Corner rounding endmills |
| Cutting Item Count (CICT) | 5 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 5 mm | Body Material | Steel |
| Overall Length (OAL) | 63 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Application | | Profile Milling | | Shank Height (H) | 22 mm |
| Master Insert Identification (MIID) | RQMT10T3ENC8-MM | Cutting Diameter Maximum (DCX) | 32 mm |
Product Features
| Family Description | Radius endmill with anti-rotation system, modular type (TungFlex) | Country of Origin | JAPAN |
| Remarks | Wrenches are sold separately. |
Shipping Info
Package Weight
0.000
