EPXV16M032C32.0R03

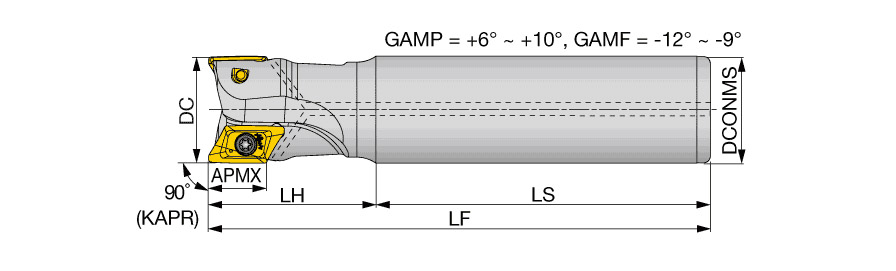

Indexable End Mill; 32 mm Dia. × 16 mm LOC × 32 mm Shank Dia. × 150 mm OAL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 32 mm | Head Length (LH) | 50 mm |
| Cutting Diameter (DC) | 32 mm | Functional Length (LF) | 150 mm |
| Cutting Item Count (CICT) | 3 | Tool Type | 90 Indexable for Aluminum |
| Depth of Cut Maximum (APMX) | 16 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 150 mm | Measurement Type | Metric |
| Application | | Shoulder Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Shank Length (LS) | 100 mm |
| Master Insert Identification (MIID) | XVCT160508PEFR-AM | Cutting Diameter Maximum (DCX) | 32 mm |
Product Features
| Family Description | Square shoulder endmill for high-speed aluminum machining | Country of Origin | S.Korea |
| Remarks | XVCT AM inserts can be used with a TPXV/EPXV cutter. DO NOT use XVCT AJ inserts with a TPXV/EPXV cutter. This may cause tool and machine damage. |
Shipping Info
Package Weight
0.000
