ERRQ10M032C32.0R05

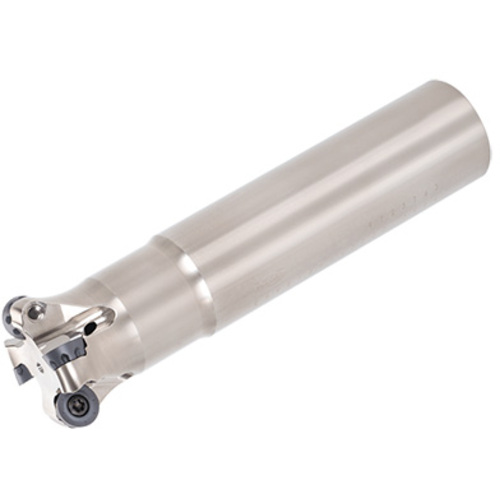

Indexable End Mill; 22 mm Dia. × 5 mm LOC × 32 mm Shank Dia. × 150 mm OAL ; Round Shank

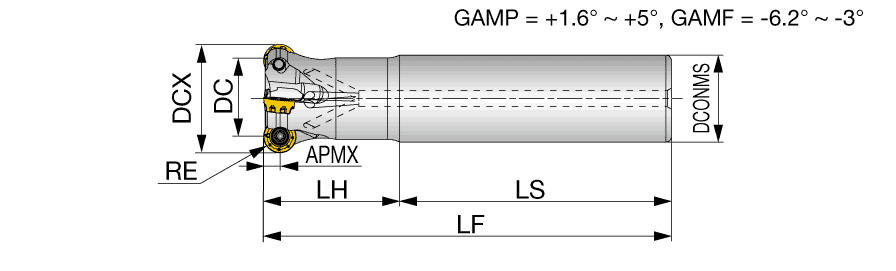

| Cutting Diameter (DC/DCX) | 22 mm | Master Insert Identification (MIID) | RQMT10T3ENC8-MM |
| Cutting Diameter (DC) | 22 mm | Head Length (LH) | 70 mm |
| Cutting Item Count (CICT) | 5 | Functional Length (LF) | 150 mm |
| Depth of Cut Maximum (APMX) | 5 mm | Tool Type | Corner rounding endmills |
| Overall Length (OAL) | 150 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Profile Milling | | Cutting Diameter Maximum (DCX) | 32 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
Product Features
| Family Description | Radius endmill with anti-rotation system, shank type | Country of Origin | JAPAN |
| Remarks | Wrenches of ERRQ10M032C32.0R05 and ERRQ12M032C32.0R03 are sold separately. |
Shipping Info
Package Weight
0.000
