| Applicable Material | | Cast Iron | | Grade | IS45C |
| Application | | Facing | Shouldering | | Tool Type | Turn Ultra hard Inserts |
| Corner Radius (RE) | 0.0472″ | Min D.O.C. | 0.02″ |
| Cutting Edge Length (L) | 1/2″ | Depth of Cut Maximum (APMX) | 0.157″ |
| Insert Thickness (S) | 0.187″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/2″ | Body Material | Carbide |
| Cutting Edge Material | Ceramic |
Product Features

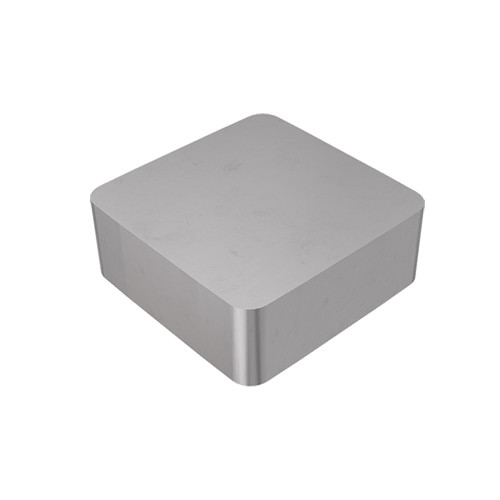

| Family Description | Radial double-sided ceramic face milling inserts. used for high-speed machining gray and nodular cast iron. peripherally ground insert for high accuracy, provides excellent surface finish. | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
4.7
