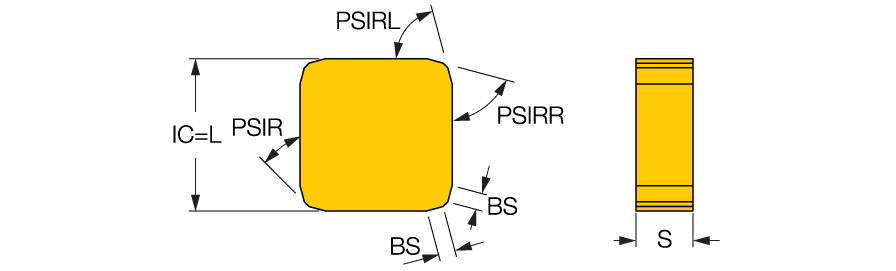

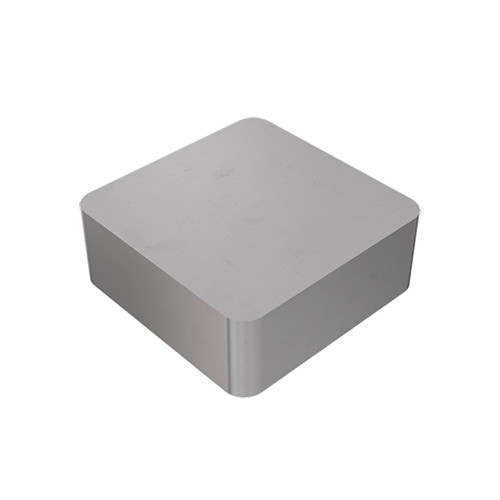

SNG 43EN T0420 IS45C
| Applicable Material | | Cast Iron | | Grade | IS45C |
| Application | | Facing | Slanted Shoulder & Chamfer | | Tool Type | Turn Ultra hard Inserts |
| Insert Style | SNG | Min D.O.C. | 0.02″ |
| Insert Size | 120 | Depth of Cut Maximum (APMX) | 0.118″ |
| Cutting Edge Length (L) | 1/2″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | A |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
Product Features
| Family Description | Negative square double-sided ceramic inserts for machining cast iron, hardened steel and heat-resistant alloys | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
