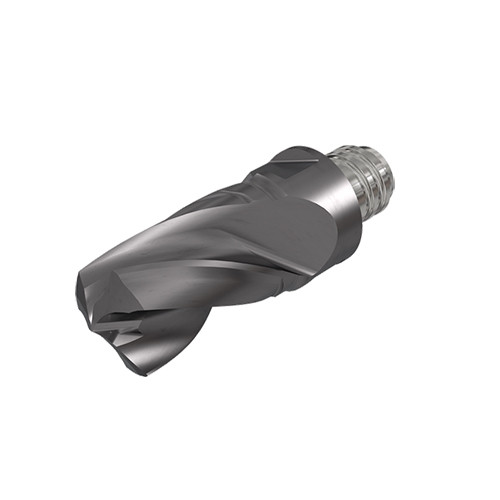

MM SPD394-39-3T08 IC908
Drill Head; 0.394″ Dia. ; 142 Degrees ; IC908 ; Carbide ; TiAlN

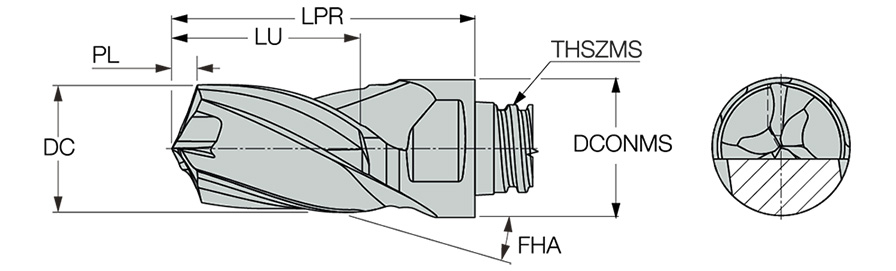

| Cutting Diameter (DC) | 0.394″ | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Drilling | | Point Length (PL) | 0.07755″ |
| Grade | IC908 | Point Angle (SIG) | 142 Degrees |
| Tool Type | Solid corner rounding endmills | Coating | TiAlN |
| Protruding Length (LPR) | 1.063″ | Body Material | Carbide |
Product Features
| Family Description | Three-flute exchangeable solid carbide drilling heads | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the thre aded connection |
Shipping Info
Package Weight
0.077
