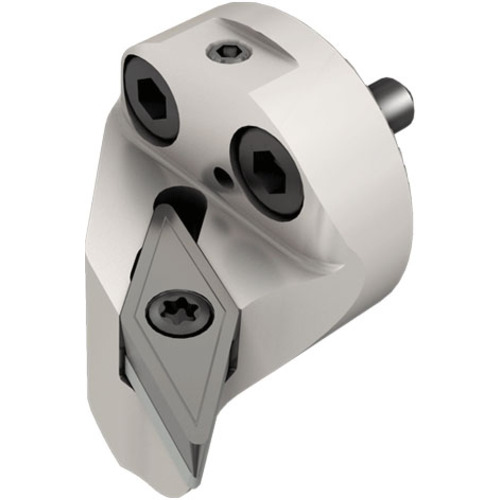

AVC-D40-SVQCL-16
Int. Turning Tool ; 1.575″ OAL ; 1.575″ Shank Dia. ; 1.575″ LF ; 1.968″ Min Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 1.575″ | Application | | Int. 35° Diamond 107.5°Approa | |
| Overall Length (OAL) | 1.575″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Width (WF) | 1.063″ | Rake Angle Radial (GAMF) | -5 Degrees |
| Master Insert Identification (MIID) | VCMT 332-F3M | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.968″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | Interchangeable boring heads carrying 35° rhombic inserts with 7° clearance and 107.5° Approach Angle | Country of Origin | Israel |
Shipping Info
Package Weight
0.494
