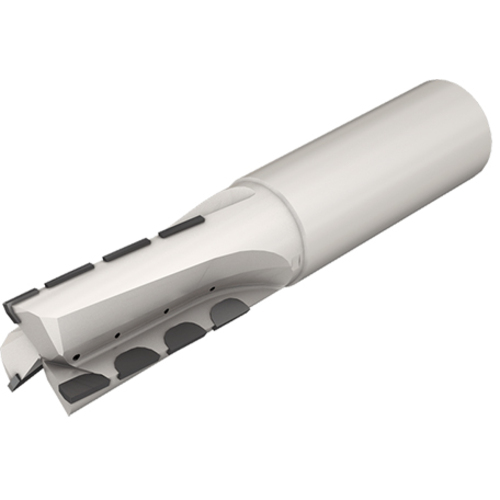

SMN D25-03-30C25-R-BRR02 ID8
SQ End Mill; 25 mm Dia. × 30 mm LOC × 25 mm Shank Dia. × 100 mm OAL ; 30 mm LBS

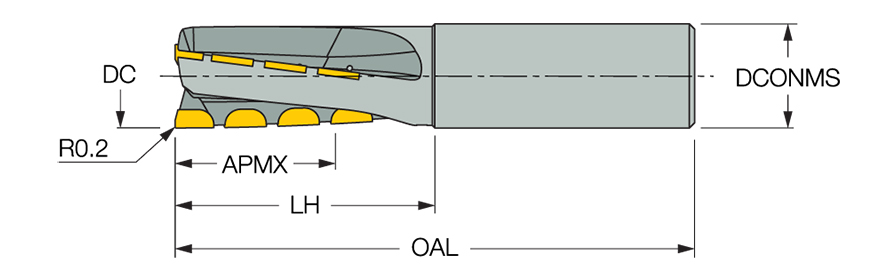

| Cutting Diameter (DC) | 25 mm | Application | | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Head Length (LH) | 45 mm |
| Depth of Cut Maximum (APMX) | 30 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Overall Length (OAL) | 100 mm | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Shank Type | Round | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| End Shape | Square | Body Material | Steel |
| Usable Length (LU) | 30 mm | Measurement Type | Metric |
Product Features
| Family Description | Extended flute PCD endmills for high speed machining of aluminum, CFRP, graphite with IT.TE.DI. tools | Country of Origin | Italy |
