SEHFD10Z02CM10L10C02 ID8

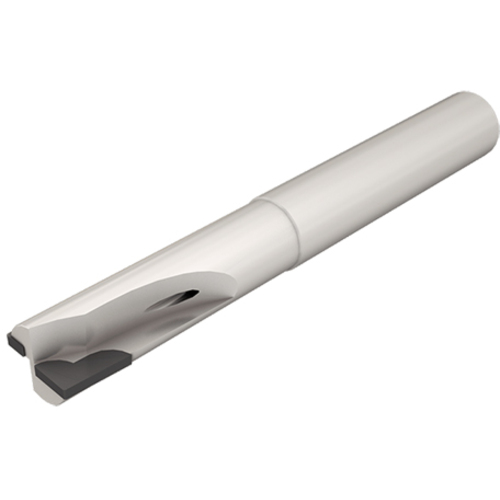

SQ End Mill; 10 mm Dia. × 10 mm LOC × 10 mm Shank Dia. × 82 mm OAL ; 10 mm LBS

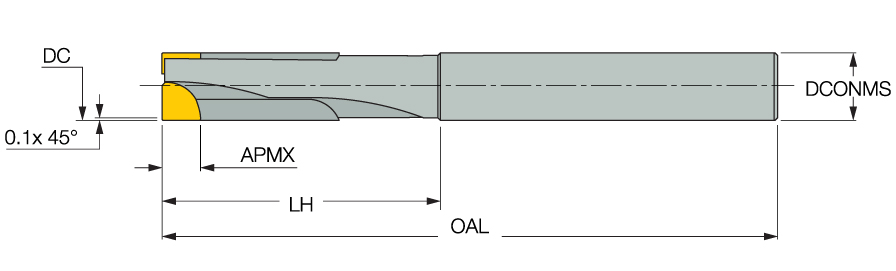

| Cutting Diameter (DC) | 10 mm | Application | | Counter Boring | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Head Length (LH) | 38 mm |
| Depth of Cut Maximum (APMX) | 10 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Overall Length (OAL) | 82 mm | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Shank Type | Round | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| End Shape | Square | Body Material | Steel |
| Usable Length (LU) | 10 mm | Measurement Type | Metric |
Product Features
| Family Description | PCD endmills for high speed machining of aluminum, CFRP, graphite with IT.TE.DI. tools | Country of Origin | Italy |
Shipping Info
Package Weight
80
