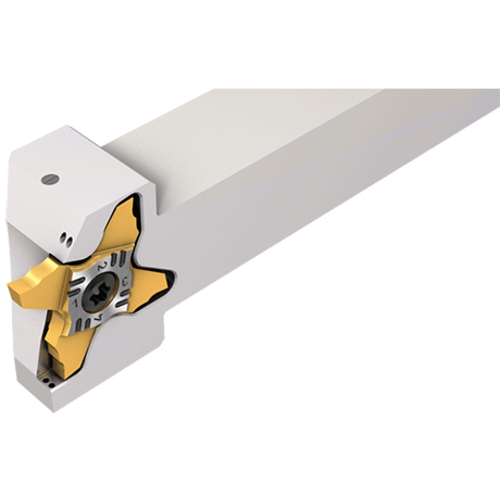

QTHL 25.4-30-JHP
Parting Off Holder; 5.315″ OAL × 0.039″ CW Min. × 0.118″ CW Max. × 0.287″ Max Depth ; Steel

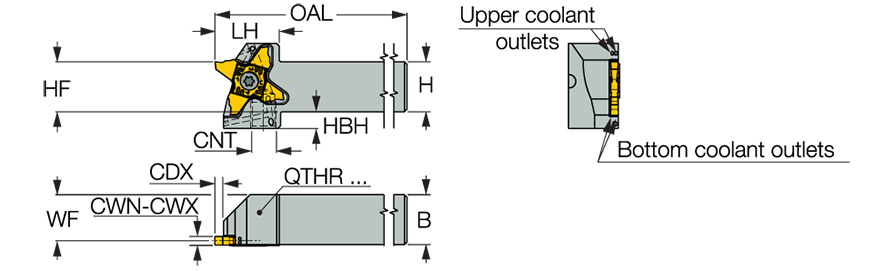

| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.039″ | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 0.118″ | Measurement Type | Inch |
| Overall Length (OAL) | 5.315″ | Functional Width (WF) | 0.941″ |
| Head Length (LH) | 0.965″ | Coolant Entry Thread Size (CNT) | G1/8 |
| Cutting Depth Maximum (CDX) | 0.287″ | Tool Assembly Length (LTA) | 3.04″ |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | Grooving and parting tools carrying GROOVE-4-CUT inserts with inlets for high-pressure coolant. | Country of Origin | Israel |
| Remarks | For more details, click on More Info |
Shipping Info
Package Weight
679
