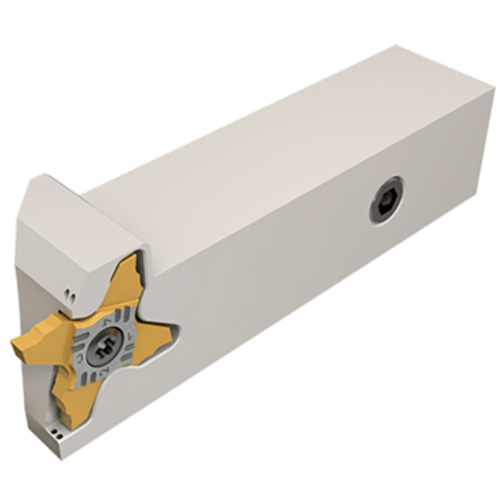

QTHR 16-30-JHP-MC
Parting Off Holder; 3.681″ OAL × 0.039″ CW Min. × 0.118″ CW Max. × 0.287″ Max Depth ; Steel
| Shank Height (H) | 0.63″ | Body Material | Steel |
| Shank Width (B) | 0.63″ | Cutting Direction (HAND) | Right Hand |
| Cutting Width Minimum (CWN) | 0.039″ | Measurement Type | Inch |
| Cutting Width Maximum (CWX) | 0.118″ | Functional Width (WF) | 0.571″ |
| Overall Length (OAL) | 3.681″ | Coolant Entry Thread Size (CNT) | UNF 5/16-24 |
| Head Length (LH) | 0.906″ | Head Bottom Offset Height (HBH) | 0.354″ |
| Cutting Depth Maximum (CDX) | 0.287″ | Tool Assembly Length (LTA) | 1.791″ |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | Grooving and parting tools carrying GROOVE-4-CUT inserts with inlets for high-pressure coolant. | Country of Origin | Israel |
| Remarks | For more details, click on More Info |
Shipping Info
Package Weight
255
