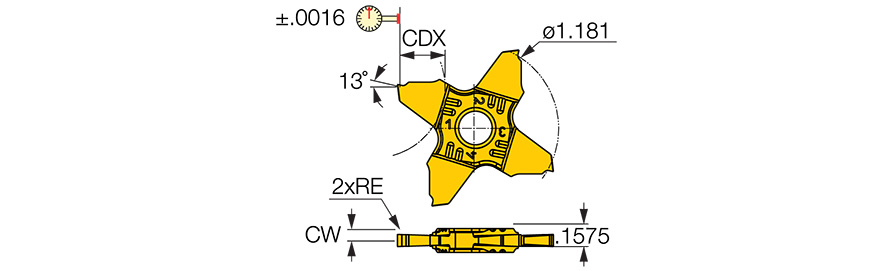

QGI 30N200P005 IC1008
Parting Off Insert; 0.079″ CW × 0.002″ Corner Radius ; Neutral ; Carbide ; TiAlN+TiN ; IC1008
| Cutting Width (CW) | 0.079″ | Max. Grooving Feed (fg(max)) | 0.0031 ″/rev |
| Corner Radius (RE) | 0.002″ | Min. Grooving Feed (fg(min)) | 0.0008 ″/rev |

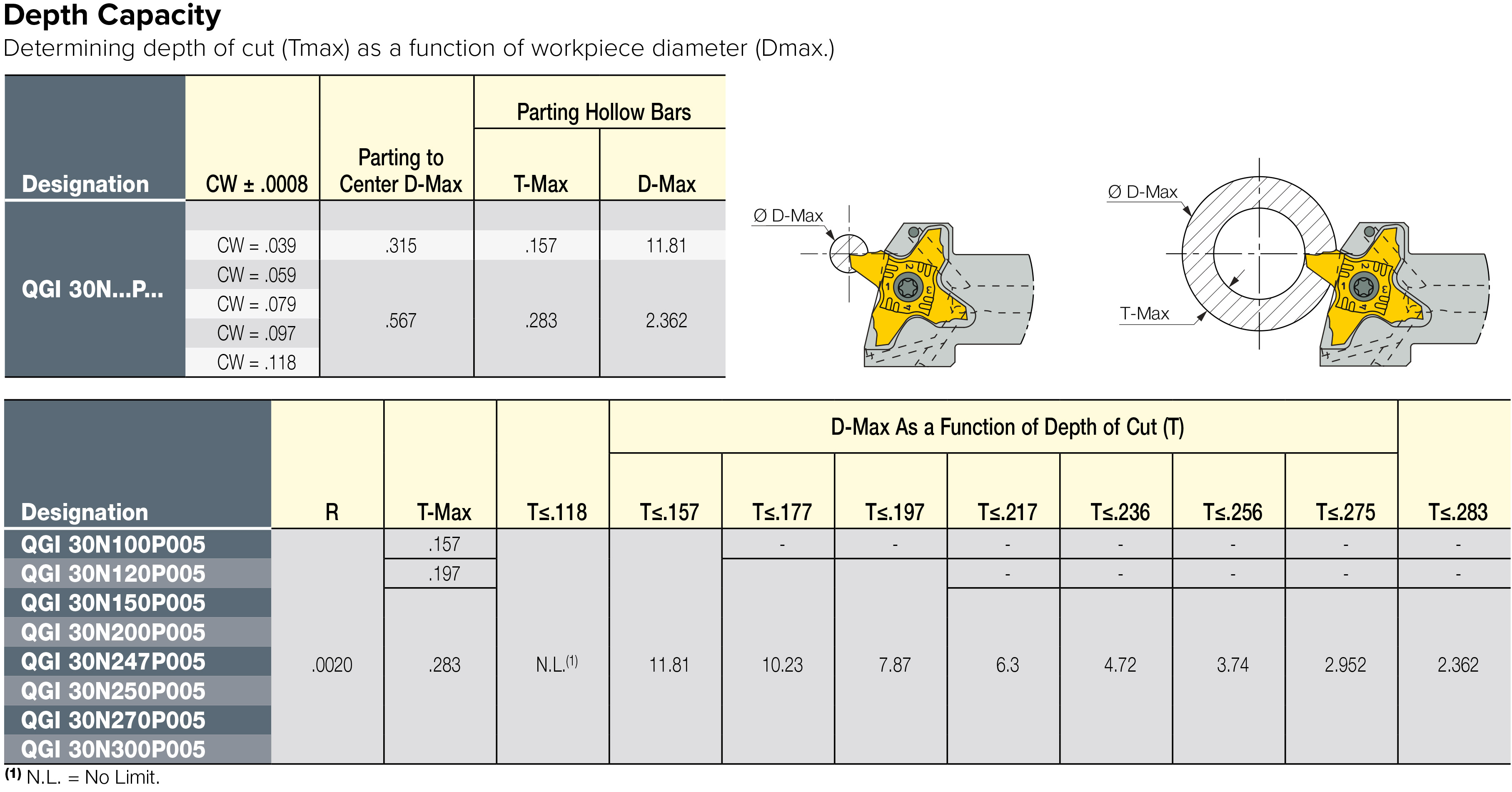

| Cutting Depth Maximum (CDX) | 0.283″ | Insert Rake Angle (GAN) | 13 Degrees |
| Cutting Edge Material | Carbide | Chip Breaker Type | P |
| Coating | TiAlN+TiN | Tool Type | Parting & Grooving Inserts |
| Grade | IC1008 | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Ext. Grooving | Parting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Width (W1) | 0.157″ |
Product Features
| Family Description | Parting and precision grooving inserts for soft and small parts. High Positive rake, P-type has small radii and no edge honing, with 4 cutting edges. | Country of Origin | Israel |
| Remarks | For parting and grooving range, click on More Info. |
Shipping Info
Package Weight
13.2
