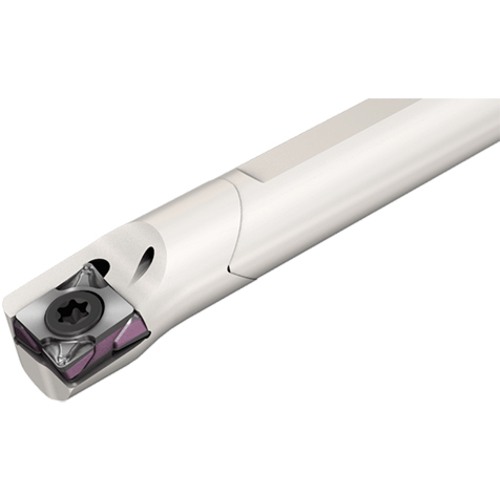

A12M SCLXR-06X
Int. Turning Tool ; 150 mm OAL ; 11 mm Shank Height ; 12 mm Shank Dia. ; 150 mm LF ; 16 mm Min Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 150 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 150 mm | Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 18 mm | Rake Angle Axial (GAMP) | 8 Degrees |
| Shank Height (H) | 11 mm | Rake Angle Radial (GAMF) | 8 Degrees |
| Functional Width (WF) | 9 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CXMU 060208 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 16 mm | Measurement Type | Metric |
Product Features
| Family Description | Screw lock boring bars on which CXMU 80° rhombic inserts are mounted | Country of Origin | Israel |
| Remarks | A - steel shank with coolant hole, E - carbide shank with coolant hole |
Shipping Info
Package Weight
130
