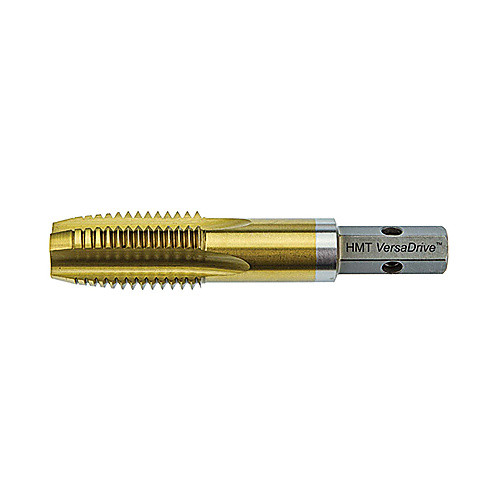

IMPACTATAP M5X0.8MM
Straight Flute Tap; M5 × 0.8 mm ; 55 mm OAL ; HSS ; H6
| Thread Diameter Size (TDZ) | M5 | Connection Diameter Machine Side (DCONMS) | 7/16″ |
| Thread Pitch (TP) | 0.8 mm | Applicable Material | | Steel | |
| Thread Standard | Metric | Cutting Edge Material | HSS |
| Overall Length (OAL) | 55 mm | Thread Tolerance Class (TCTR) | H6 |
| Usable Length (LU) | 27 mm | Chamfer | 2 Threads |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.066
