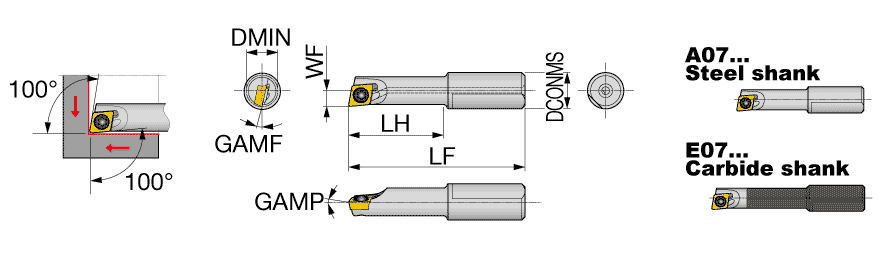

| Connection Diameter Machine Side (DCONMS) | 7 mm | Application | | For 75deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 37 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 20 mm | Rake Angle Radial (GAMF) | -13 Degrees |
| Functional Width (WF) | 2.5 mm | Body Material | Carbide |
| Master Insert Identification (MIID) | EPGT03X102 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 5 mm |

Product Features
| Family Description | TinyMiniTurn screw-on boring bar, for positive 75 degree rhombic insert. | Country of Origin | JAPAN |
| Remarks | Use the left hand insert (L) for the right hand tool holder (A/E SEXPR). |
