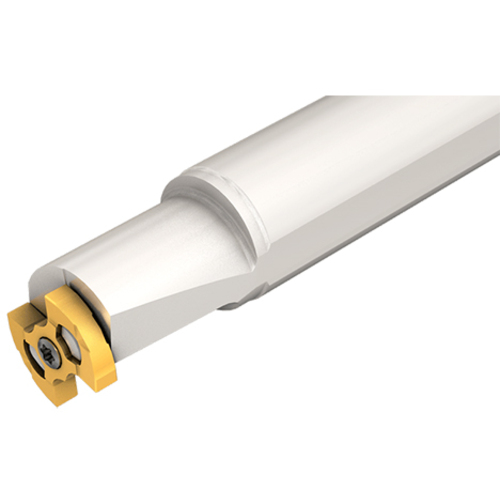

GQHINR 16C-16.5-20
Grooving Toolholder ; 130 mm OAL ; 16 mm Shank Dia. ; 1 mm CW Min. ; 3 mm CW Max. ; 2.5 mm Max Depth ; Steel

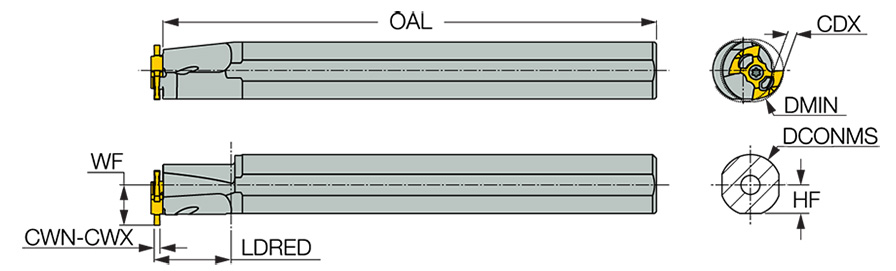

| Cutting Width Minimum (CWN) | 1 mm | Overall Length (OAL) | 130 mm |
| Cutting Width Maximum (CWX) | 3 mm | Connection Diameter Machine Side (DCONMS) | 16 mm |
| Cutting Depth Maximum (CDX) | 2.5 mm | Application | | Int. Groove & Turn | |
| Minimum Bore Diameter (DMIN) | 16.5 mm | Body Material | Steel |
| Functional Width (WF) | 10.6 mm | Tool Type | Indexable Turn & Groov Tools |
| Head Length (LH) | 20 mm | Measurement Type | Metric |
Product Features
| Family Description | Internal grooving and turning bars on which inserts with 4 cutting edges are Mounted. | Country of Origin | Israel |
Shipping Info
Package Weight
0.45
