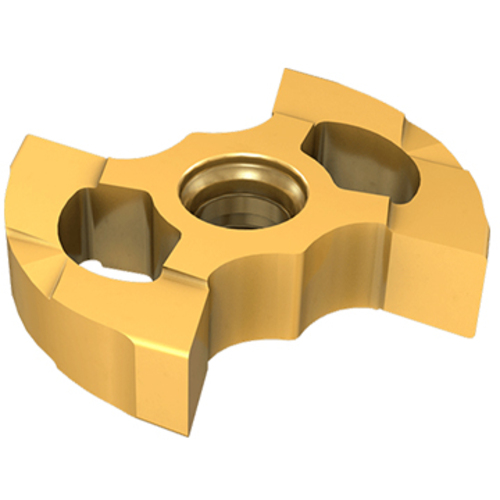

GQIN 2.00-0.20 IC808G
Parting Off Insert; 0.079″ CW × 0.0079″ Corner Radius ; Neutral ; Carbide ; TiAlN+AlTiN+TiN ; IC808G

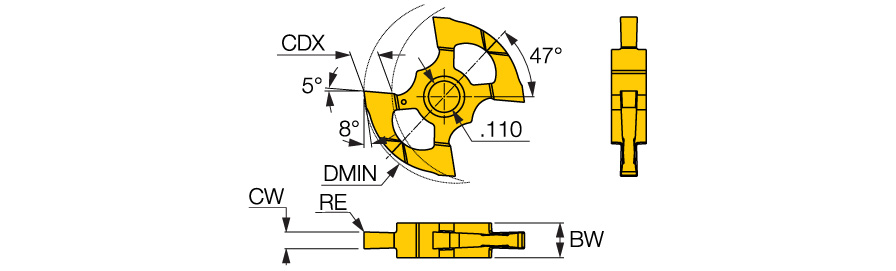

| Cutting Width (CW) | 0.079″ | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0079″ | Max. Grooving Feed (fg(max)) | 0.0024 ″/rev |
| Cutting Depth Maximum (CDX) | 0.098″ | Min. Grooving Feed (fg(min)) | 0.0008 ″/rev |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808G | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Insert Width (W1) | 0.122″ |
| Application | | Int. Groove & Turn | Int. Grooving | |
Product Features
| Family Description | 4 cutting edges precision grounded inserts for internal grooving and recessing operations | Country of Origin | Israel |
| Remarks | Cutting edge with high positive rake, suitable for thin walled parts and for small diameters Suitable for Machining soft materials and bearing steel at low to medium feeds |
Shipping Info
Package Weight
3.4
