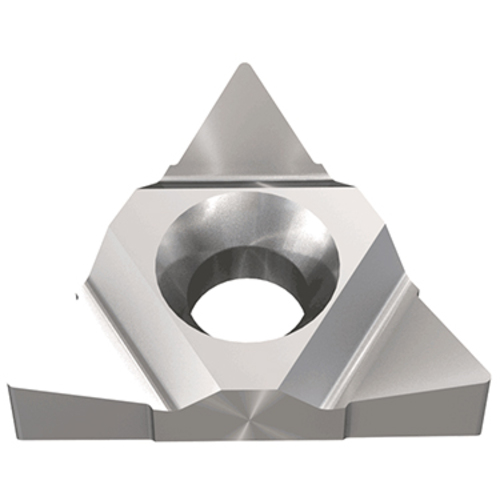

MT TNCT 16U 60D 908
Laydown Threading Insert ; 0 mm TP ; 0 TPI ; 0.649″ Length ; 3/8″ IC ; THFT | ; Carbide ; IC908 ; TiAlN
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

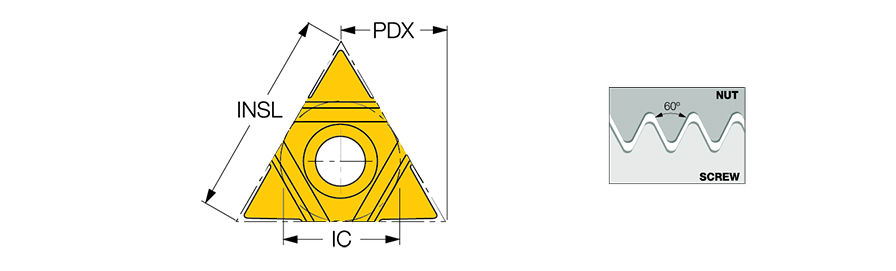

| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Insert Length (INSL) | 0.649″ | Threads per Inch Minimum (TPIN) | 4 |
| Thread Pitch (TP) | 0 mm | Threads per Inch Maximum (TPIX) | 6 |
| Threads per Inch (TPI) | 0 | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | VP60 |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0″ |
| Application | | External Thread Milling | Internal Thread Milling | |
Product Features
| Family Description | 60° partial profile laydown U-type thread milling inserts, for general industry | Country of Origin | Israel |
Shipping Info
Package Weight
5.2
