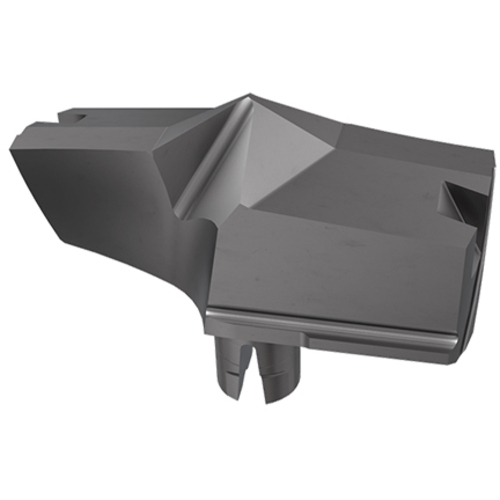

IFHP 13125-SPADE-BD IC954
Drill Head; 1.313″ Dia. ; 137 Degrees ; IC954 ; TiAlCrN
| Cutting Diameter (DC) | 1.313″ | Measurement Type | Inch |
| Applicable Material | | Steel | | Point Length (PL) | 0.16732″ |
| Application | | Drilling | | Point Angle (SIG) | 137 Degrees |
| Grade | IC954 | Coating | TiAlCrN |
| Tool Type | Drilling Heads | Corner Chamfer Width (CHW) | 0.039″ |
| Insert Seat Size Code (SSC) | 33.0 | Body Material | Carbide |
| Functional Length (LF) | 0.425″ |
Product Features
| Family Description | Exchangeable DFN Drill Heads for machining construction beams and structural steel materials | Country of Origin | Israel |
| Remarks | Intermediate sizes can be supplied on request |
Shipping Info
Package Weight
57
