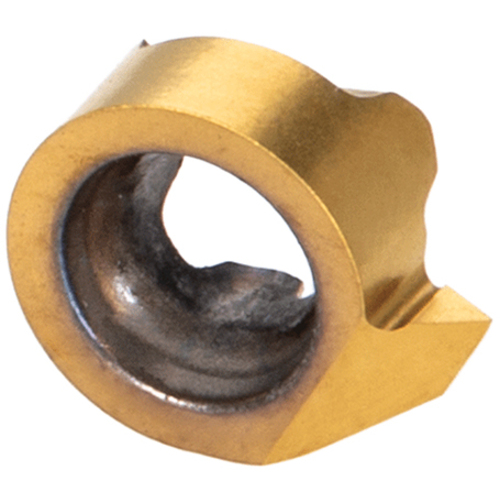

MTR560F007-D07 SH7025
| Corner Radius (RE) | 0.0027″ | Thread Pitch Minimum (TPN) | 1 mm |
| Cutting Width (CW) | 0.154″ | Thread Pitch Maximum (TPX) | 1.25 mm |
| Grade | SH7025 | Tool Type | Threading Regular Inserts |
| Coating | TiAlN+TiCN | Threads per Inch Maximum (TPIX) | 25.4 |
| Cutting Edge Material | Carbide | Threads per Inch Minimum (TPIN) | 20.3 |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Application | | Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | | Insert Length (INSL) | 0.257″ |
| Minimum Bore Diameter (DMIN) | 0.276″ |
Product Features

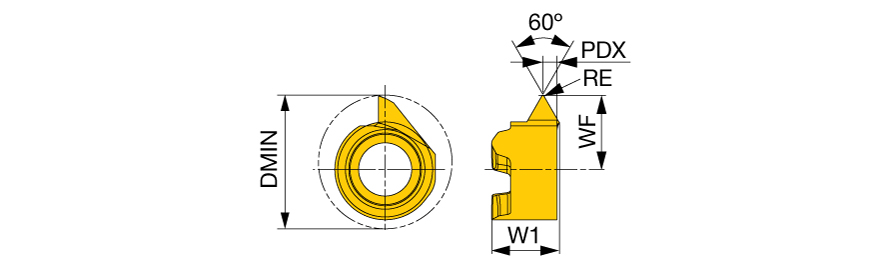

| Family Description | Insert for threading, 60 deg general purpose threading, partial profile | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
