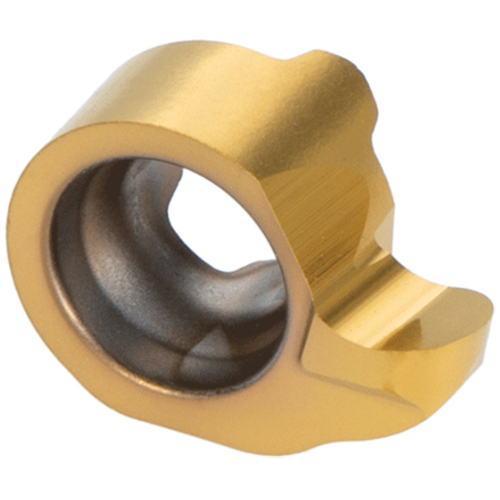

MGR5100F050-D07 SH7025
Grooving Insert; 0.039″ CW × 0.039″ Max Depth ; Carbide ; SH7025 ; TiAlN+TiCN

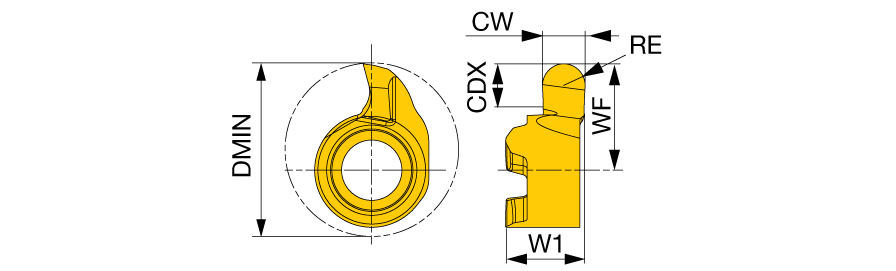

| Cutting Width (CW) | 0.039″ | Application | | Inserts | |
| Corner Radius (RE) | 0.0197″ | Applicable Material | | Steel | Stainless Steel | |
| Cutting Depth Maximum (CDX) | 0.039″ | Cutting Direction (HAND) | Right Hand |
| Coating | TiAlN+TiCN | Measurement Type | Inch |
| Grade | SH7025 | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Body Material | Carbide |
Product Features
| Family Description | Full radius insert for profiling and undercutting | Country of Origin | JAPAN |
