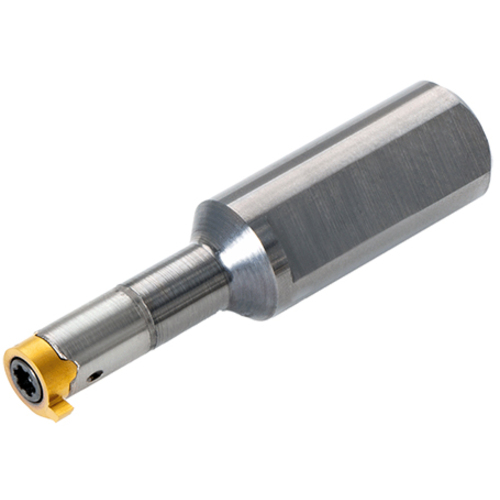

E07180-SMR5
Grooving Toolholder ; 0.252″ Shank Height ; 0.276″ Shank Dia. ; 0.039″ CW Min. ; 0.079″ CW Max. ; 0.079″ Max Depth ; Right Hand ; Carbide

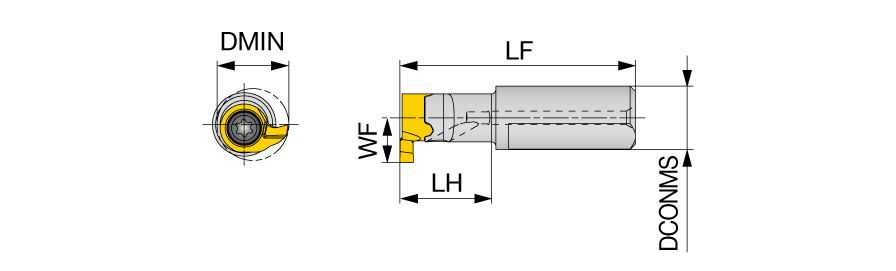

| Cutting Width Minimum (CWN) | 0.039″ | Head Length (LH) | 0.709″ |
| Cutting Width Maximum (CWX) | 0.079″ | Connection Diameter Machine Side (DCONMS) | 0.276″ |
| Cutting Depth Maximum (CDX) | 0.079″ | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 0.252″ | Application | | Internal grooving | Internal Threading | |
| Minimum Bore Diameter (DMIN) | 0.276″ | Body Material | Carbide |
| Functional Width (WF) | 0.156″ | Tool Type | Indexable Turn & Groov Tools |
| Functional Length (LF) | 1.339″ | Measurement Type | Inch |
Product Features
| Family Description | TinyMiniTurn internal grooving and threading toolholder | Country of Origin | JAPAN |
| Remarks | DMIN and WF differ based on each insert geometry. For DMIN and WF, please refer to insert size table. |
Shipping Info
Package Weight
0.000
