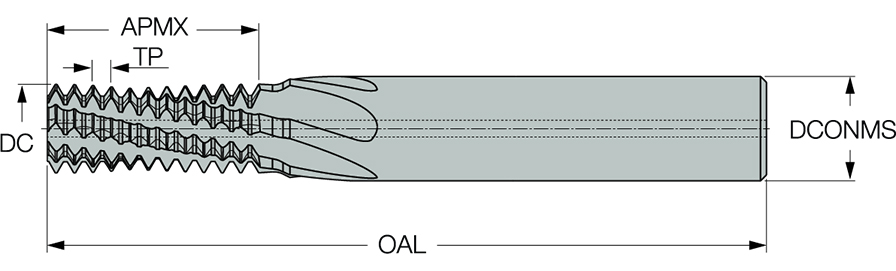

| Thread Pitch (TP) | 1.058 mm | Application | | Internal Thread Milling | |
| Threads per Inch (TPI) | 24 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | UNF |THFT | | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.394″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 0.26″ | Grade | IC908 |
| Overall Length (OAL) | 2.874″ | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 7 | Depth of Cut Maximum (APMX) | 0.559″ |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | UN60 |
Product Features

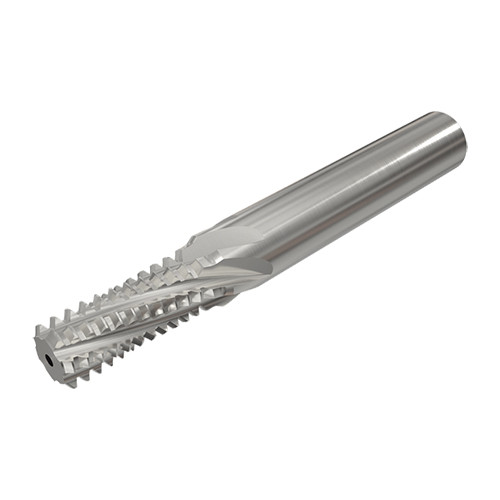

| Family Description | Solid carbide internal threading endmills with a coolant hole. Intended for UN thread profile | Country of Origin | Israel |
| Remarks | Internal & External tolerance: ISO 228-1 - Medium class |
Shipping Info
Package Weight
0.159
