| Threads per Inch (TPI) | 28 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | BSP |THFT | | Cutting Edge Material | Carbide |

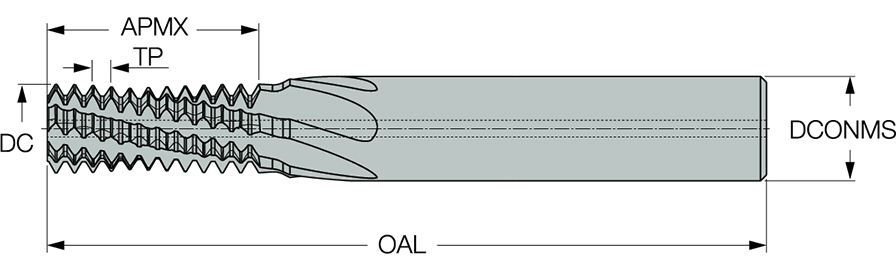

| Connection Diameter Machine Side (DCONMS) | 0.315″ | Usable Length (LU) | 0.5354″ |
| Cutting Diameter (DC) | 0.307″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.52″ | Grade | IC908 |
| Flute Count (NOF) | 8 | Tool Type | Solid carbide thread mills |
| Coolant Supply Property (CSP) | Coolant Thru | Depth of Cut Maximum (APMX) | 0.551″ |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | WH55 |
Product Features

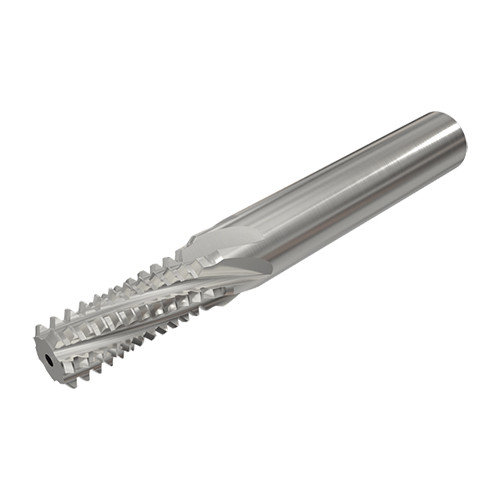

| Family Description | Solid carbide internal or external threading endmills with a coolant hole. Intended for BSF/BSP thread profiles. | Country of Origin | Israel |
| Remarks | Internal & External tolerance: B.S.84 - Medium class |
Shipping Info
Package Weight
28
