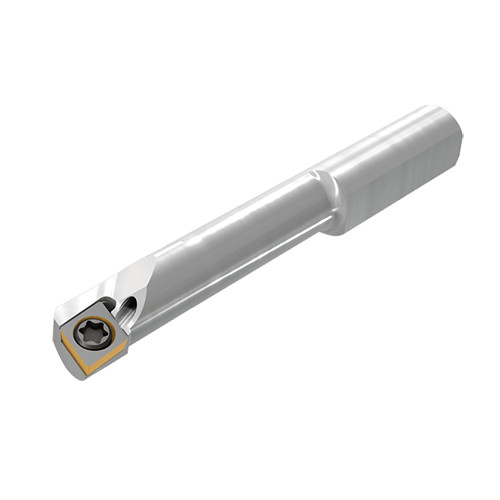

PICIN A06-T15-SCLCL-03
Boring Bar; 0.236″ Shank Dia. × 0.236″ Min Bore Dia. × 0.59″ LU × 1.181″ LF
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Usable Length (LU) | 0.59″ |
| Minimum Bore Diameter (DMIN) | 0.236″ | Shank Height (H) | 0.213″ |
| Functional Length (LF) | 1.181″ | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Rake Angle Axial (GAMP) | 0 Degrees |
| Application | | Int. 80° Diamond 95° Approach | | Rake Angle Radial (GAMF) | 15 Degrees |
| Functional Width (WF) | 0.089″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CCGT 03X101-F1P | Measurement Type | Inch |
Product Features
| Family Description | PICCO tools on which 80° rhombic inserts are mounted | Country of Origin | Israel |
Shipping Info
Package Weight
22
