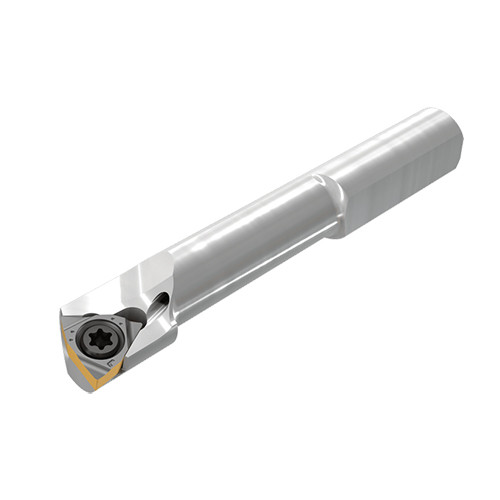

PICIN A06-T25-SWUBR-06
Boring Bar; 0.236″ Shank Dia. × 0.256″ Min Bore Dia. × 0.98″ LU × 1.575″ LF
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Usable Length (LU) | 0.98″ |
| Minimum Bore Diameter (DMIN) | 0.256″ | Shank Height (H) | 0.213″ |
| Functional Length (LF) | 1.575″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Rake Angle Axial (GAMP) | 0 Degrees |
| Application | | Int. 80° Trigon 93° Approach | | Rake Angle Radial (GAMF) | 15 Degrees |
| Functional Width (WF) | 0.128″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WBMT 060101L | Measurement Type | Inch |
Product Features
| Family Description | PICCO Tools on which Small WBMT/WBGT Trigon Inserts are mounted | Country of Origin | Israel |
| Remarks | Use right-hand WBMT 06...R inserts on left-hand tools and left-hand WBMT 06...L inserts on right-hand tools |
Shipping Info
Package Weight
27
