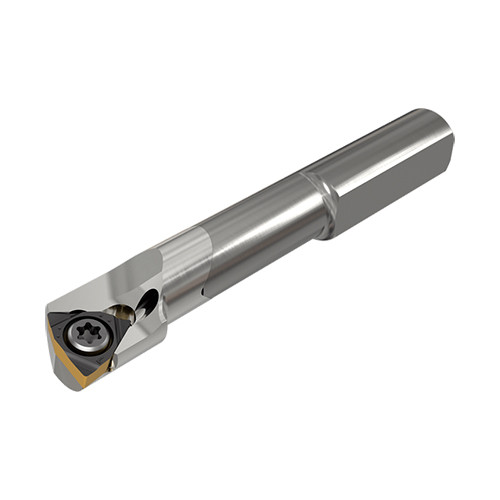

PICIN E06-T25-SWUBR-06

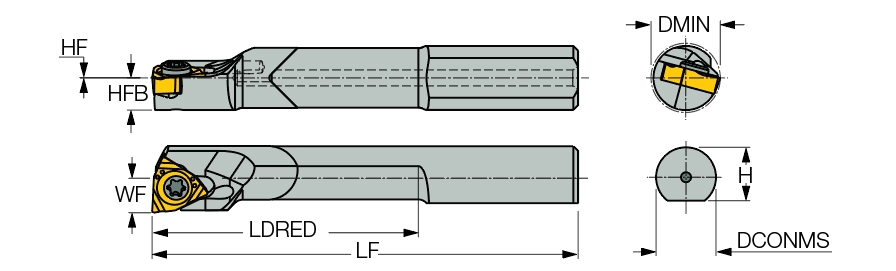

Boring Bar; 0.236″ Shank Dia. × 0.256″ Min Bore Dia. × 0.98″ LU × 1.575″ LF
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Usable Length (LU) | 0.98″ |
| Minimum Bore Diameter (DMIN) | 0.256″ | Shank Height (H) | 0.213″ |
| Functional Length (LF) | 1.575″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Rake Angle Axial (GAMP) | 0 Degrees |
| Application | | Int. 80° Trigon 93° Approach | | Rake Angle Radial (GAMF) | -15 Degrees |
| Functional Width (WF) | 0.128″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WBMT 060101L | Measurement Type | Inch |
Product Features
| Family Description | Solid carbide PICCO tools carrying small WBMT/WBGT trigon inserts for .256″ minimum bore diameter | Country of Origin | Japan |
| Remarks | Use right-hand WBMT 06...R inserts on left-hand tools and left-hand WBMT 06...L inserts on right-hand tools |
Shipping Info
Package Weight
31
