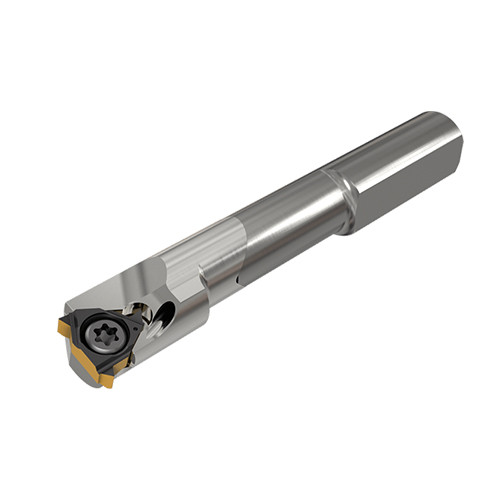

PICIN E06-T25-MGSIR-06

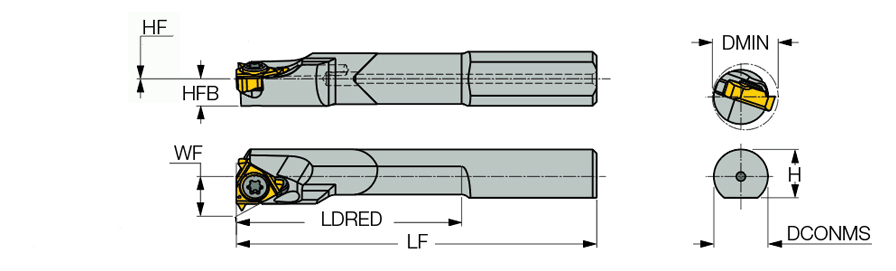

Boring Bar; 0.236″ Shank Dia. × 0.287″ Min Bore Dia. × 0.98″ LU × 1.575″ LF
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Usable Length (LU) | 0.98″ |
| Minimum Bore Diameter (DMIN) | 0.287″ | Shank Height (H) | 0.213″ |
| Functional Length (LF) | 1.575″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Rake Angle Axial (GAMP) | -2 Degrees |
| Application | | Internal Threading lay down | | Rake Angle Radial (GAMF) | -18.5 Degrees |
| Functional Width (WF) | 0.174″ | Tool Type | Internal Indexable Threading Tools |
| Master Insert Identification (MIID) | 06IR A 55 | Measurement Type | Inch |
Product Features
| Family Description | Solid Carbide PICCO Tools on which Internal Laydown Threading Inserts are Mounted for .287″ mm minimum bore diameter | Country of Origin | Japan |
| Remarks | B-steel shank with coolant hole, CB-carbide shank with coolant hole All toolholders provide 1.5 helix angle, either via the pocket or the anvil supplied For GTGA inserts, use anvil AL 16-0 |
Shipping Info
Package Weight
0.064
